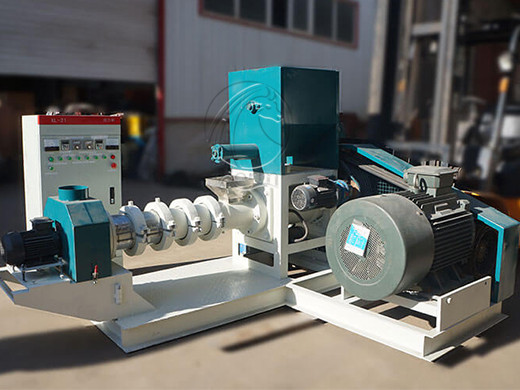

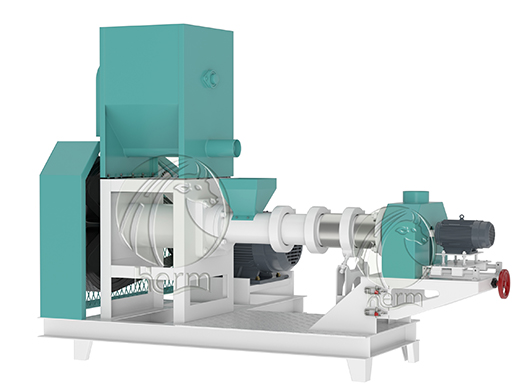

DGP Fish Feed Extruder

Feed Pellet Mill Introduction

The DGP dry-type fish feed extruder is designed to transform a variety of grains into premium aquatic feed pellets for fish, crabs, catfish, shrimps, and more. This dry-type fish feed pellet extruder mill has become increasingly favored by fish farmers and is well-suited for small to medium-sized aquaculture farms or feed pellet processing plants.

Opting to produce your own fish feed pellets with this fish farm feed pellet extruder proves to be a cost-effective alternative compared to purchasing ready-made fish feed.

Make a Quick Inquiry Now !

This dry-type fish feed extruder mill has versatile applications, extending beyond aquatic feed to encompass pet foods for dogs, cats, fish, shrimp, foxes, and more. It offers various configurations to meet diverse output requirements. The dry-type fish feed extruder is capable of producing popular pet foods with unique shapes, appealing tastes, high nutritive value, and distinctive characteristics, catering to the varied preferences of pets.

Utilizing grain, soybean, cereal, or other materials, the fish feed extruder machine creates pellets that float on water for approximately 12 hours, making it particularly beneficial for the aquaculture industry, including fish, shrimp, tortoises, and other aquatic products.

fish_feed_machine_price

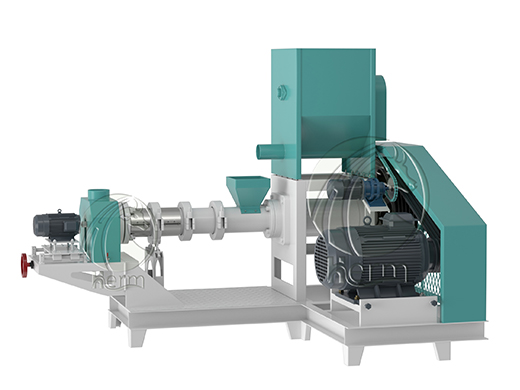

fish_feed_machine_cost
Make a Quick Inquiry Now !

DGP Fish Feed Extruder Advantages

1. A wide range of raw materials, corn, wheat bran, rice, soybean meal, rice, sorghum, and other raw materials can kill salmonella and bacterial infection after high temperature and high-pressure treatment.

2. In addition to producing floating fish feed and sinking fish feed, this production line can also produce high-quality pet feed such as dogs and cats, which is suitable for farm owners and pet feed manufacturers.

3. The diameter of the pellets can be from 1.0 mm to 10 mm.

4. We can also customize different fish feed pellet equipment according to your raw materials and specific requirements.

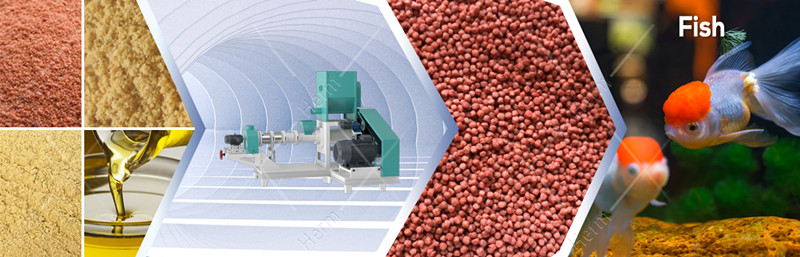

dry_type_fish_extruders
Make a Quick Inquiry Now !

What Is Fish Feed Extrusion Process?

The commercial fish feed extrusion process involves cooking a blend of feed ingredients rapidly under high temperature, humidity, and pressure using a fish feed extrusion machine. The elevated temperature is achieved through either friction (dry extrusion) or pre-treatment and steam infusion (wet extrusion).

Extrusion, as a method, enables the processing of diverse fish feed ingredients, including soybeans, corn, rice, peas, and materials with high moisture content. The fish feed extruding process can be categorized into two types based on the raw material's moisture content: dry extruding and wet extruding.

In the dry extrusion process, friction-generated heat is employed to elevate the material's temperature, compelling it to pass through the die hole while attaining a specific pressure through screw extrusion. Upon exiting the die hole, the material experiences a rapid pressure drop, leading to water evaporation and achieving the desired extrusion effect. The water content is consistently maintained at approximately 15% to 20% throughout this process.

In the wet extrusion process, the principle mirrors that of dry extrusion but involves the addition of water and steam to raise the moisture level to over 20%, and in some cases, even 30%. This is essential as the material's temperature elevation relies on the introduction of steam.

DGP Fish Feed Extruder Technical Parameters

ModelCapacity(t/h)MainPower(kW)Feeding power(kW)Screw Diameter(mm)Machine size (mm)Cutting power(kW)Machine weight (kg)
DGP-40C(single phase)0.03-0.045.50.4401400*1030*12000.4220
DGP-40C0.03-0.045.50.4401400*1030*12000.4240
DGP-50C0.06-0.08110.4501470*1100*12500.4320
DGP-60C0. 12-0. 15150.4601470*1120*12500.4350
DGP-70B0. 18-0.2518.50.4701650*1400*13000.4580
DGP-80B0.3-0.35220.4801800*1450*13000.6695
DGP-90B0.4-0.45370.4902100*1450*13501.5950
DGP-120B0.5-0.7550.41202400*1950*16002.21700
DGP-135B0.8- 1.0750.41332550*2050*16502.21900
DGP-160B1.2-1.5900.75-1.11553100*2650*18003.03200
DGP-200B1.8-2.01321.5kw1953100*2850*19003.0-4.03800
