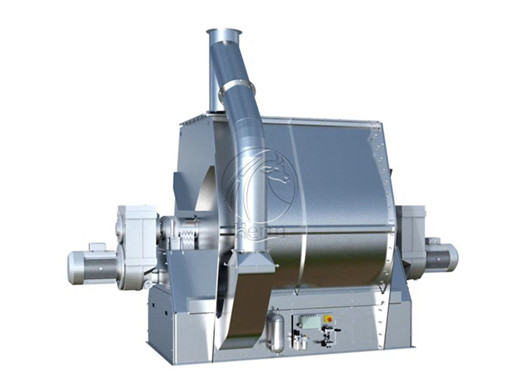

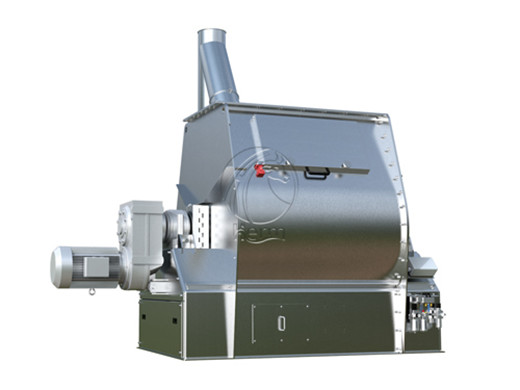

The premix feed mixer is a specialized mixing equipment designed for 1%–5% feed premix, micro-element additives, and high-precision powder materials. It is widely used in the feed, additive, food, chemical, and pharmaceutical industries, capable of rapidly, efficiently, and accurately mixing dozens or even hundreds of micro ingredients.
Featuring high mixing uniformity, short mixing time, minimal material loss, and zero cross-contamination, this machine has become a standard configuration for modern premix processing plants, feed manufacturers, and large-scale farming groups.
Make a Quick Inquiry Now !1. Superior Mixing Uniformity for Accurate Micro-Ingredient Control

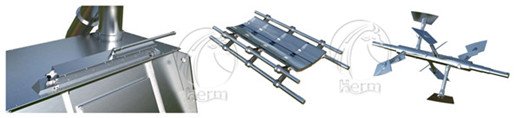

Advanced paddle structure ensures multi-directional convection, shear, diffusion, and tumbling of materials.
Mixing uniformity reaches CV ≤ 3%–5%, meeting high-end premix production standards.
Capable of evenly dispersing micro ingredients with inclusion rates as low as 0.01%.
2. Fast Mixing and High Batch Efficiency
Achieves a complete and uniform mixing cycle within 45–120 seconds;
3–5 times more efficient than traditional mixing equipment;
Significantly increases plant capacity and reduces labor waiting time.
3. Ultra-Low Residue to Prevent Cross-Contamination
Streamlined body design eliminates dead corners.
Large pneumatic discharge door ensures rapid and complete unloading.
Standard residue rate ≤ 0.1%, ideal for high-quality premix production;
An optional self-cleaning system improves hygiene standards.
4. Reliable Sealing System with Zero Dust Leakage
Equipped with reinforced sealing strips and heavy-duty locking mechanisms;
Prevents powder leakage during operation;
Creates a cleaner working environment and meets global hygiene standards.
5. Robust Structure and Long Service Life
The main body is built with high-quality welded steel.
Critical components such as bearings, reducers, and seals use reputable brands.
Ensures long service life, low maintenance requirements, and stable operation.
6. Optional Liquid-Adding System for Powder–Liquid Mixing
Supports the addition of oil, nutrient solutions, enzyme preparations, etc.;
Fine atomization nozzles ensure uniform spraying without clogging.
Meets the needs of high-end premix formulas requiring liquid additives.
7. Intelligent Control System (Optional)
PLC control with touch-screen operation;
Automated weighing, mixing, and discharge;
Can be integrated with plant management systems for real-time monitoring and batch traceability.
The premix mixer typically adopts a single-shaft or double-shaft paddle structure.
This mixing method is particularly suitable for premix formulations that contain complex ingredients and require extremely precise dosage control.
Yes. It is ideal for ppm-level micro additives and ensures precise, uniform distribution.
No. The zero-gravity mixing technology effectively prevents material segregation.
Absolutely. Its high uniformity and low-residue design make it suitable for premium premix applications.
Depending on customer needs, we provide:
| Model | SHDJ0.2 | SHDJ0.5 | SHDJ1 | SHDJ2 | SHDJ3 | SHDJ4 | SHDJ6 |
| Volume(m3) | 0.2 | 0.5 | 1 | 2 | 3 | 4 | 6 |
| Mixing quantity(kg) | 100 | 250 | 500 | 1000 | 1500 | 2000 | 3000 |
| Time/batch(s) | 60-180 | 60-180 | 60-180 | 60-180 | 60-180 | 60-180 | 60-180 |
| Mixed uniformity(%) | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 |
| Power(kW) | 2.2/3 | 5.5/7.5 | 11/15 | 18.5/22 | 30 | 37/45 | 55 |
